13600013712| Model | SUE2400 |
|---|---|
| Output | |
| Rated power | 2400W |
| Peak power | 4800W |
| Rated voltage | 220/230/240VAC |
| Output frequency | 50/60Hz±0.1% |
| Output waveform: | Pure sine wave |
| THDV% | <2% (linear load) ; <7% (non-linear load) |
| Overload capacity | 5 min @ 102%~120% rated load； 10s@120%~150% rated load； 5s@>150% of rated load |
| Efficiency | |
| Grid charging (AC-DC) | 93% |
| Battery discharge(DC-AC) | 92% |
| MPPT | 99.9% |
PV charging | 96% |
| Grid charging | |
| Input voltage range | 184Vac~253Vac |
| Input frequency range | 48Hz-51Hz |
| Input power factor | ≥0.95 |
| Battery and Charging | |
| Battery nominal voltage | 51.2Vdc |
| Rated capacity: | 50Ah |
| Capacity | 2.56kWh |
| Charging control method | Pre charge, constant current, constant voltage,equalization charge, float charge, shutdown |
| Charging interruption voltage | 56.8V adjustable |
| Discharge termination voltage | 44V adjustable |
| Charging current | Default 20A, maximum 40A, adjustable |
| Pre charge current | 1.5A |
| Solar charging | |
| PV maximum input power | 800W*2 |
| PV maximum open circuit voltage | 100VDC |
| PV operating voltage range: | 10~100VDC |
| PV input current | MPPT 16A max |
| MPPT quantity | 2 |
| PV charging current | 0-16A*2 |
| Interface | |
| APP | Mobile APP manages and controls grid connection time and power |
| Communication interface | On/off command interface, RS485, CAN communication |
| Environment | |
| Operating temperature range | -20~55 ℃ |
| Working humidity range | 0-98% (no condensation) |
| Heat dissipation | external fan |
| Noise | <45dB |
| Protection | IP65 |
| Structure | |
| Size | 394mm*266mm*92mm |
| Weight | 7.5kg |
| *The rated voltage/frequency range can be adjusted based on the requirements of the local power department. | |
产品中心

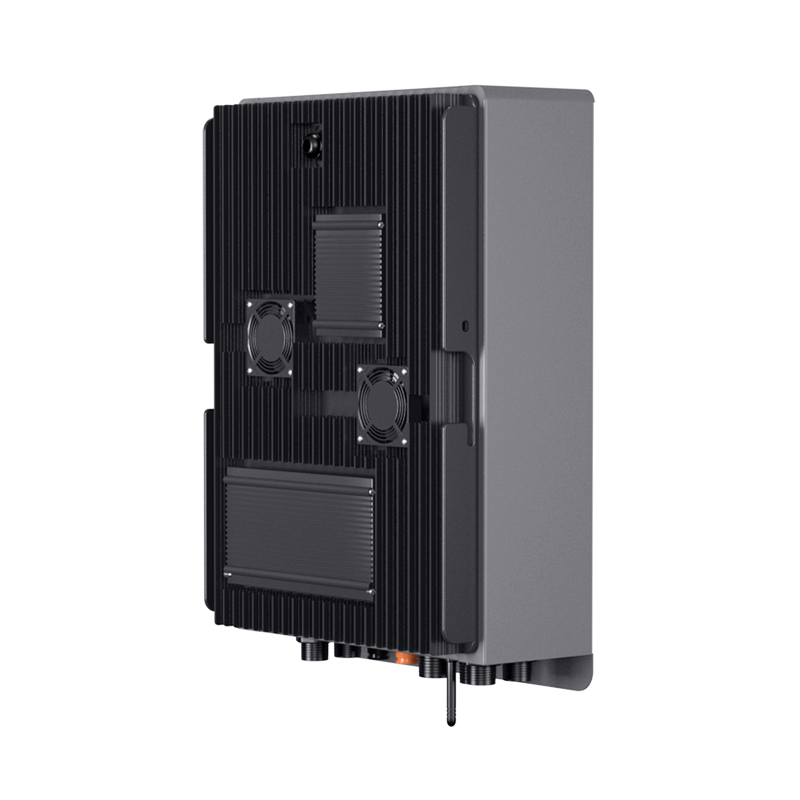

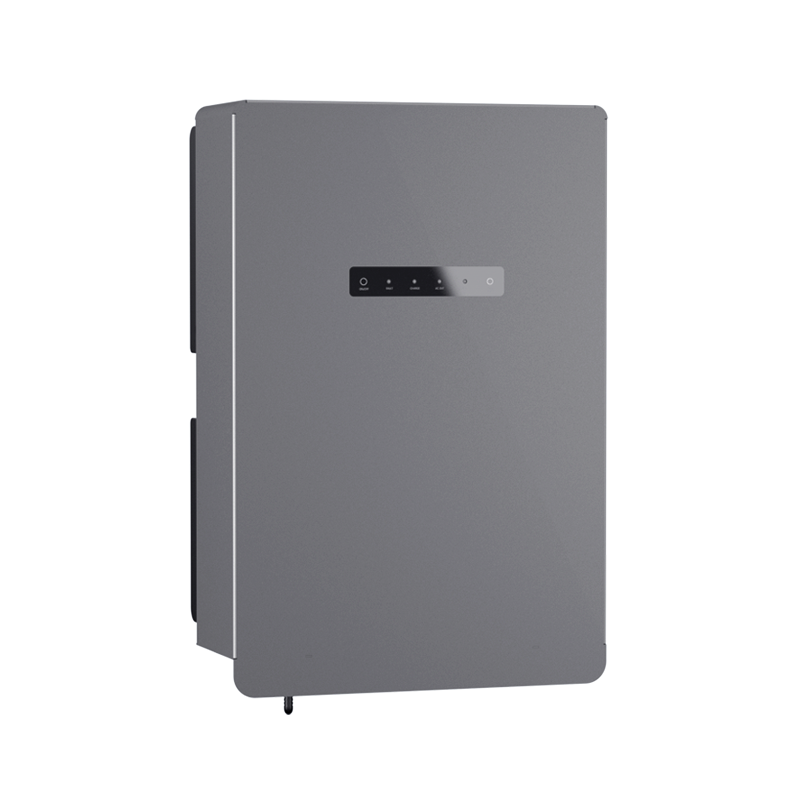

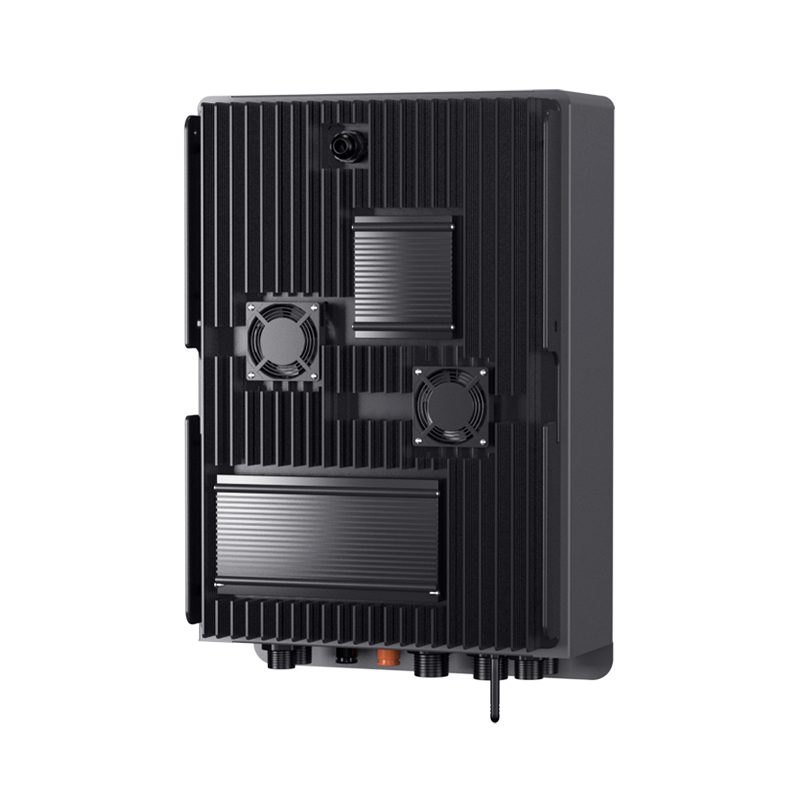

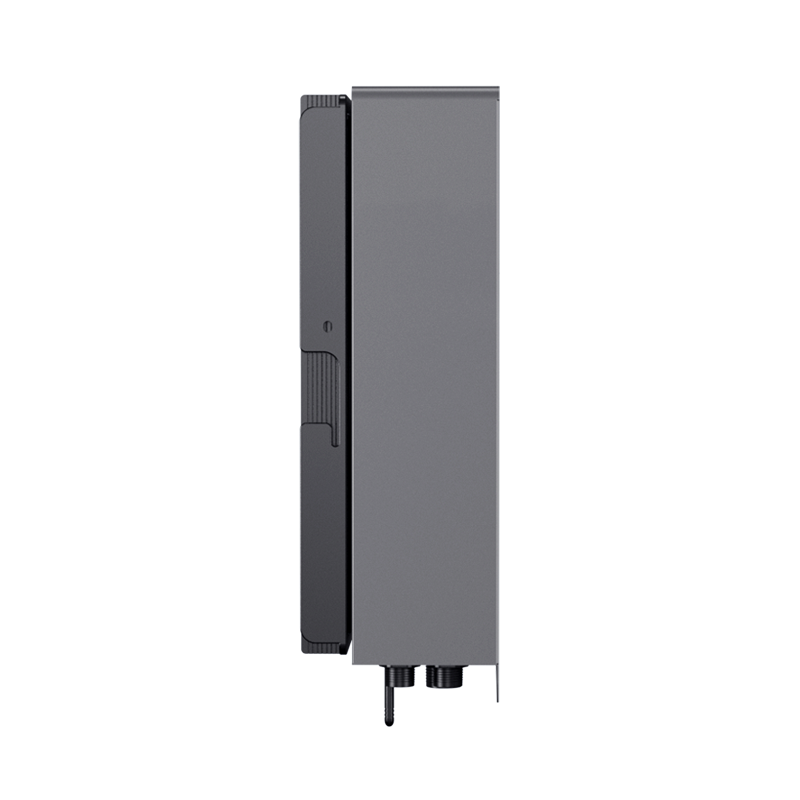

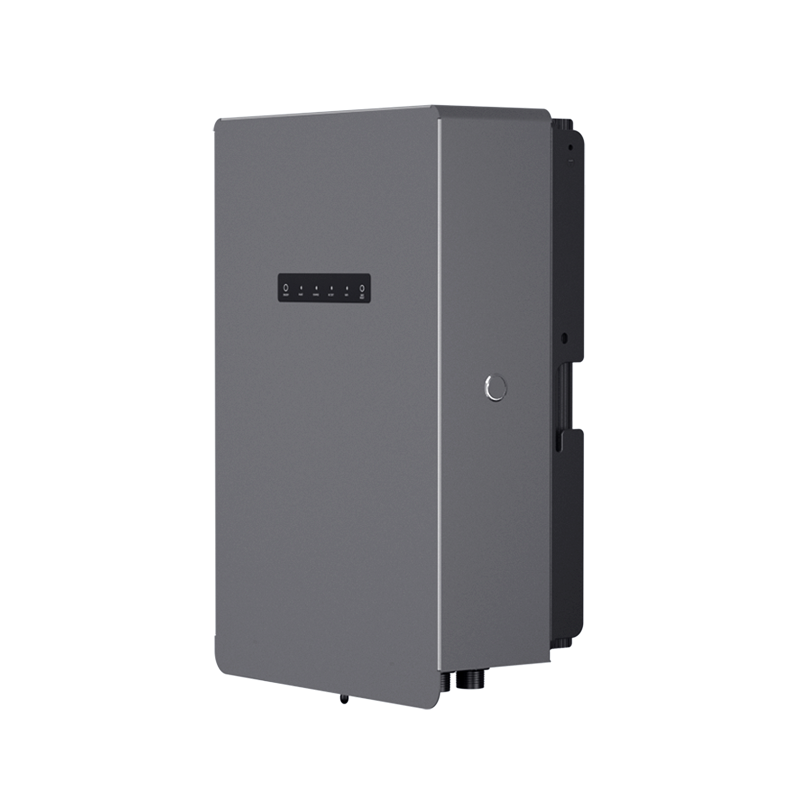

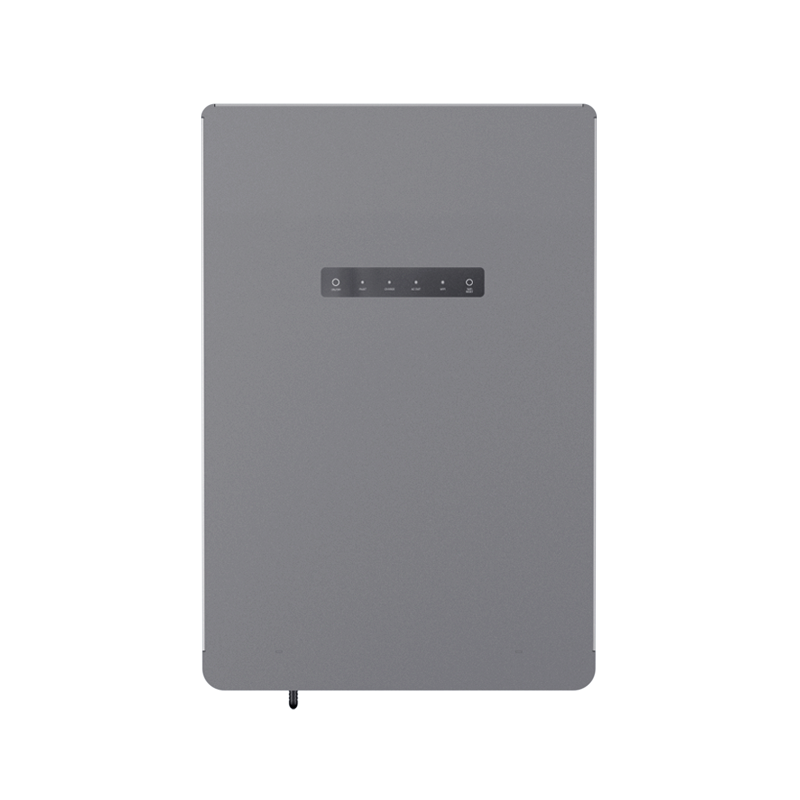

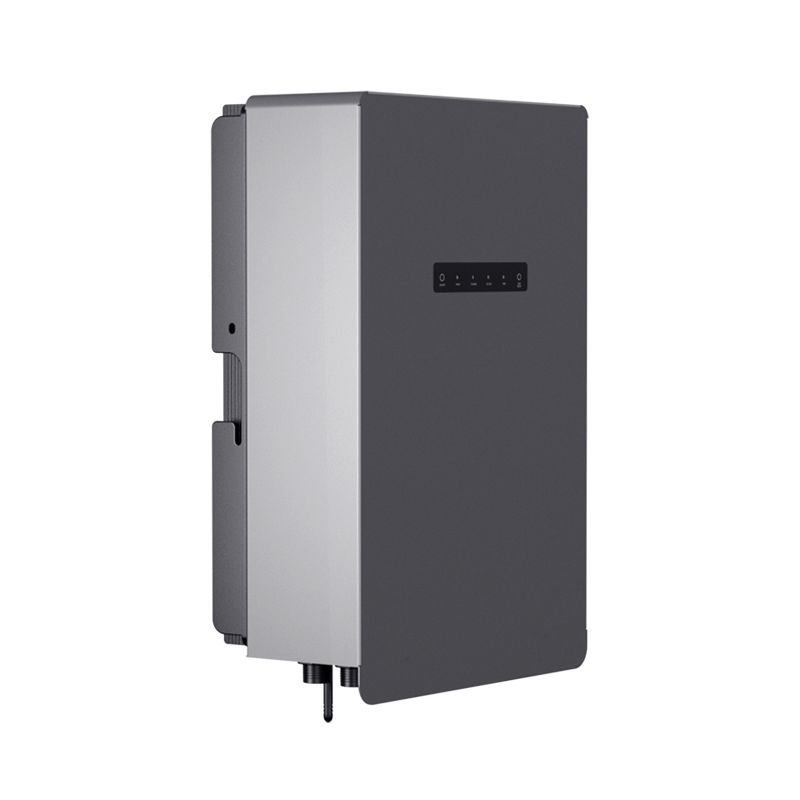

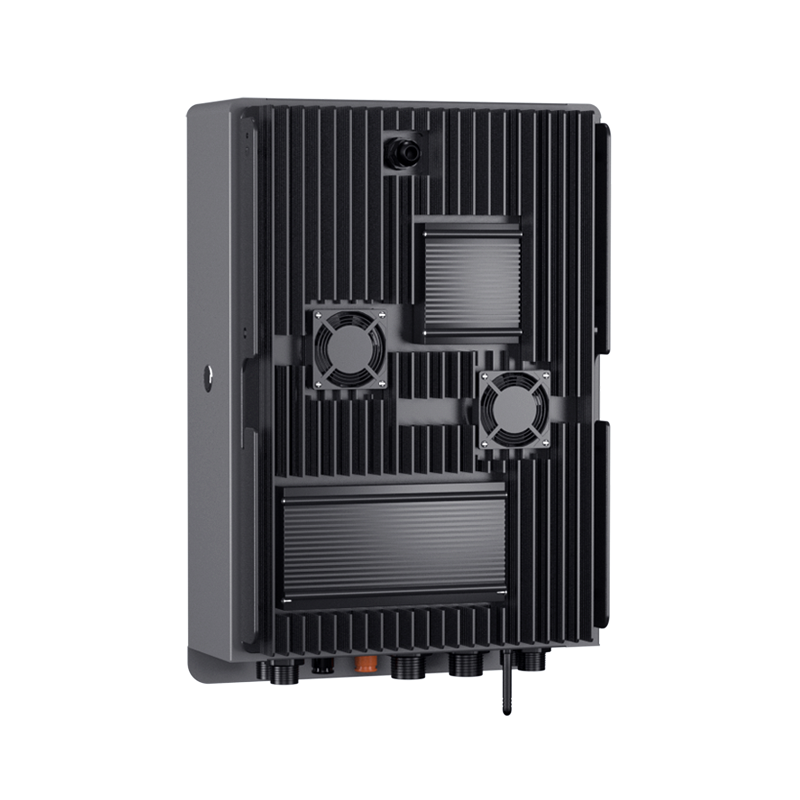

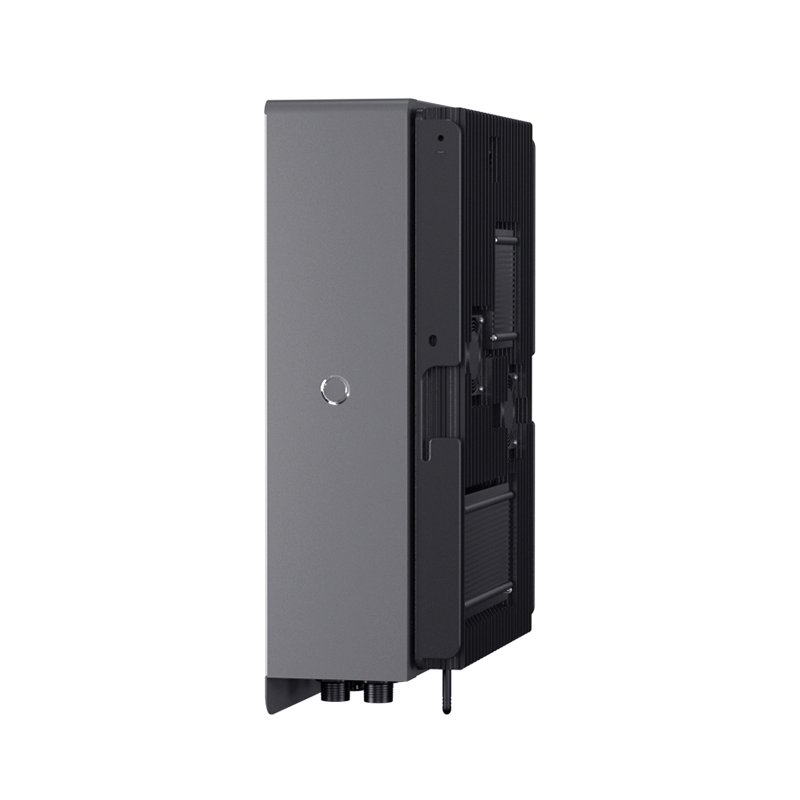

智能阳台光伏逆变器SUMES-2400
这款创新设备将满足您所有电力需求。无论是家里有电还是没电，它都能为您提供智能电力管理。通过并网功能，您可以在电价高昂时利用电池供电，节省开支；而在电价低时，电池将被充电，确保经济高效。此外，内置10毫秒UPS保障了重要负载的持续供电，避免任何中断。
我们的设备不仅支持光伏发电，还能将其存储，充分利用可再生能源。安装简便，无需复杂布线，节省空间。它的IP65等级使其防雨防尘，可以放心放置在室外。
拥有EMC: EN IEC 61000-1/3
LVD: EN IEC 62109-1/2
Grid: VDE-AR-N 4105
RoHS: IEC62321-3/4/5/6/7/8
UN38.3报告/认证。
