13600013712| Model | SUH6K |
| PV maximum input power (kW) | |
| PV max. open circuit voltage (V) | 7.5 |
| MPPT Operating Voltage Range (VDC) | 550 |
| Full Power MPPT Operating Voltage Range (VDC) | 80-520 |
| MPPT Maximum input current (A) | 19/19 |
| Maximum short-circuit current (A) | 25/25 |
| MPPT number / string | 2/1 |
| Nominal input voltage (V) | 360 |
| Grid-connected AC output | |
| Nominal output power to the power grid (kW) | 6 |
| Max. grid-connected power (kVA) | 6 |
| Maximum charging power (kVA) | 6 |
| Maximum charging current (A) | 21.8 |
| Grid rated output current (A) | 21.8 |
| Maximum grid-connected current (A) | 21.8 |
| Nominal voltage / frequency | 230V(176V~280V),50/60hZ,L+N+PE |
| Adjustable power factor | 0.8 |
| THDI | <2% |
| Off-grid AC output | |
| Rated output power (kW) | 6 |
| Maximum power (kVA) | 6 |
| Nominal output current (A) | 21.8 |
| Maximum output current (A) | 21.8 |
| Nominal voltage / frequency | 230V(176V~280V),50/60hZ,L+N+PE |
| UPS | <20 |
| THDU | <2% |
| overload capacity | 110%,10s/150%,5s/180%,1s/200%,100ms |
Efficiency | |
| maximal efficiency | 96.65% |
| European efficiency | 97.50% |
| MPPT productiveness | 99.00% |
| Battery discharge efficiency | 94.60% |
| Battery voltage range (V) | 40-60 |
| Recommended Battery Voltage (V) | 48 |
| Maximum charging voltage (V) | 60 |
| Maximum charge and discharge current (A) | 120/120 |
| Battery type | Lithium or lead-acid batteries |
| Protect | |
| DC switch | support |
| DC reverse polarity protection | support |
| The DC / AC lightning protection system | Class II lightning protection |
| AC overpressure protection | support |
| Communication short circuit protection | support |
| Ground fault monitoring | support |
| Anti-isolated island effect protection | support |
| Surplus power monitoring | support |
| Insulation resistance monitoring | support |
| Peak / trough time setting | support |
| Conventional data | |
| human-computer interface | lcd screen/ App |
| BMS protect | RS485,CAN |
| Measurement system / meter | RS485 |
| communication | WIFI/LAN |
| IP protection | IP66 |
| operating temperature range | -25~60℃ |
| relative humidity | 0-95% without condensation |
| height | 4000m |
| cooling | natural cooling |
| noise | ≤29dB |
| Dimensions (W * H * D) | 485*525*225mm |
| net weight (kg) | 24 |
| Self-consumption (W) | <15 |
| Compliance | |
| security control | IEC/EN62109-1/-2 |
| EMC | IEC/EN61000-6-1/-2/-3/-4 |
| on grid | IEC61727;IEC62116;Europe:EN50549;Belgium:C10/11;Spain:UNE217002;Italy:CEI 021;South Africa:Nrs 097 |
产品中心

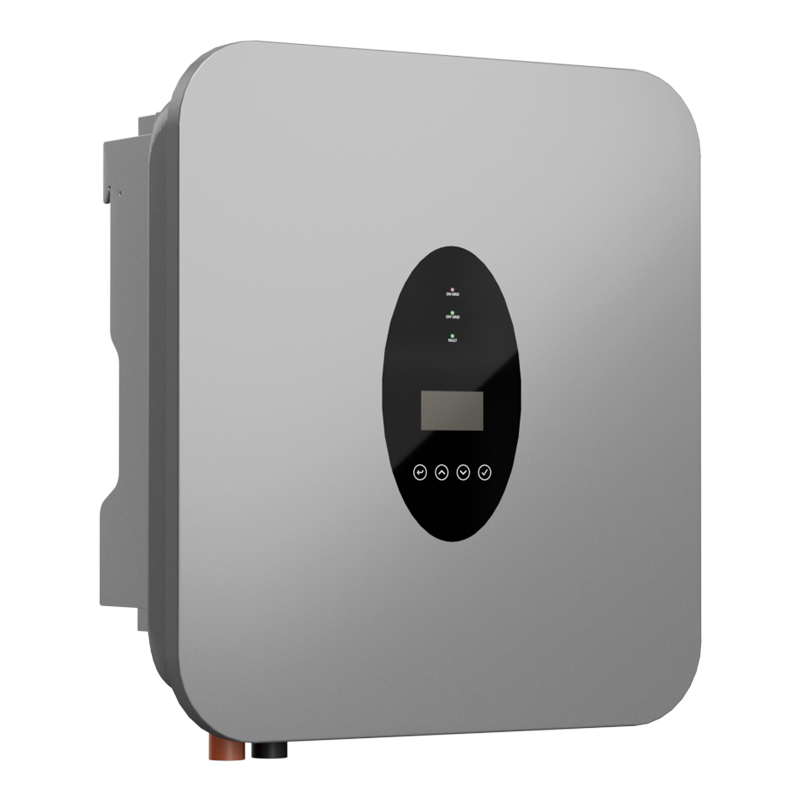

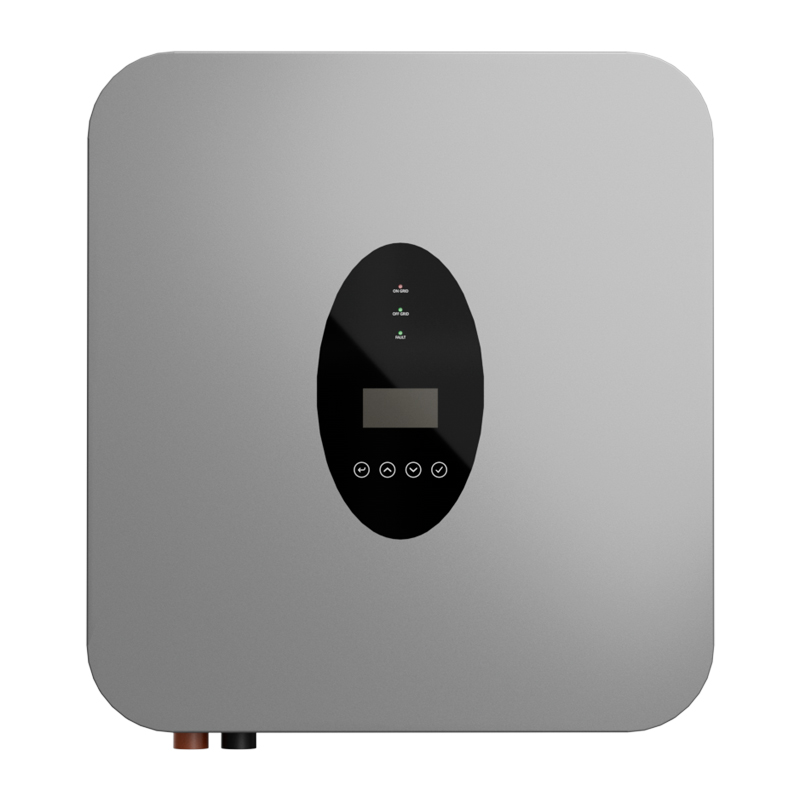

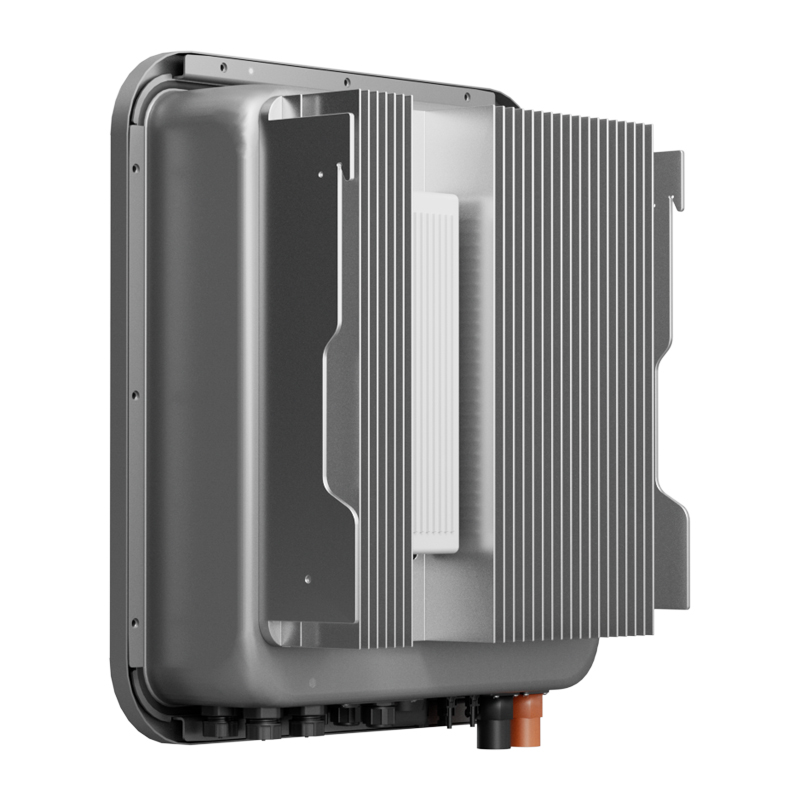

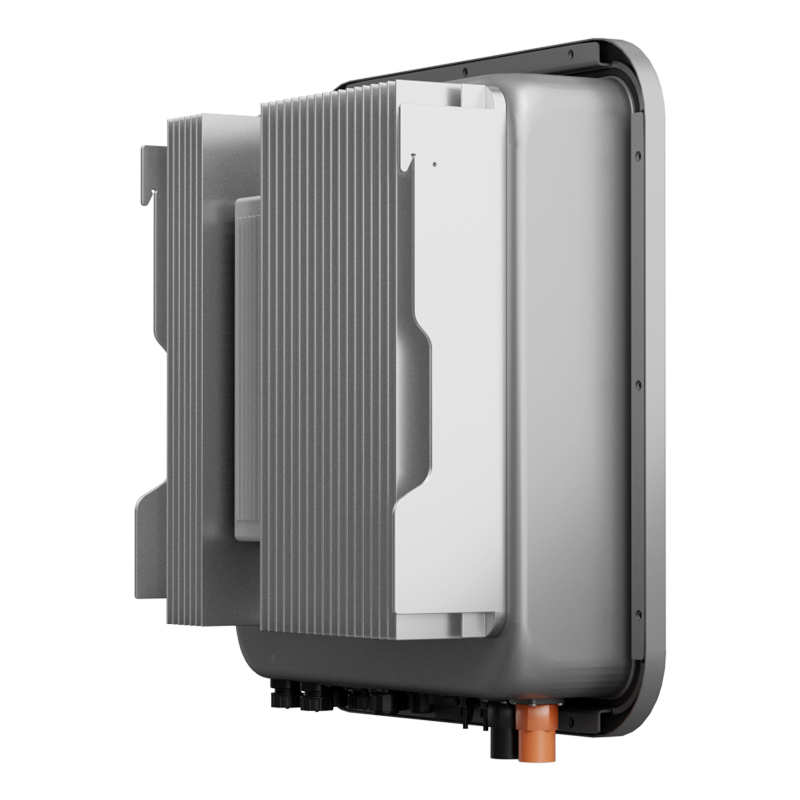

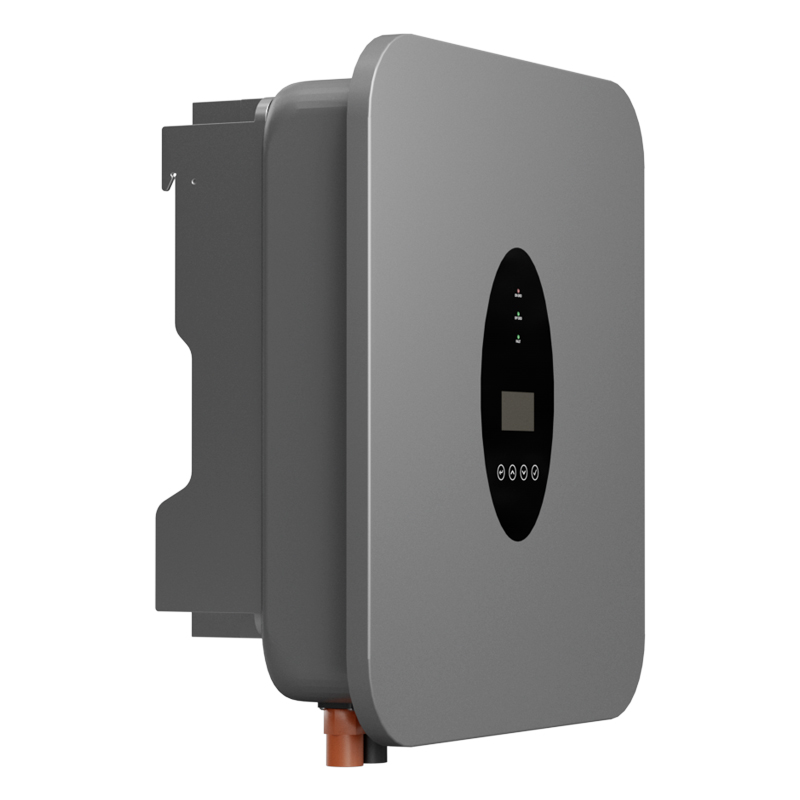

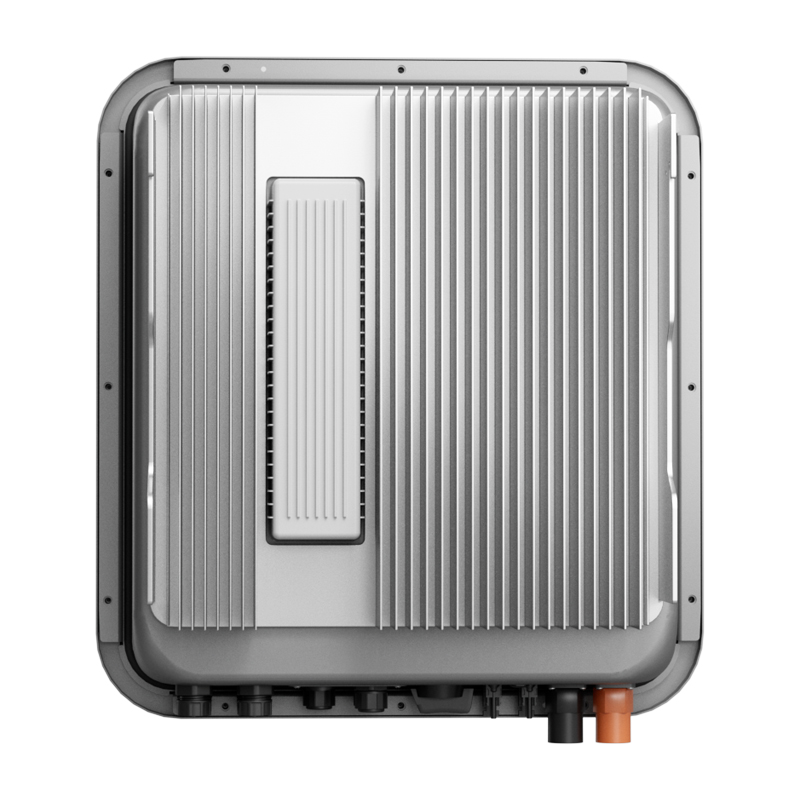

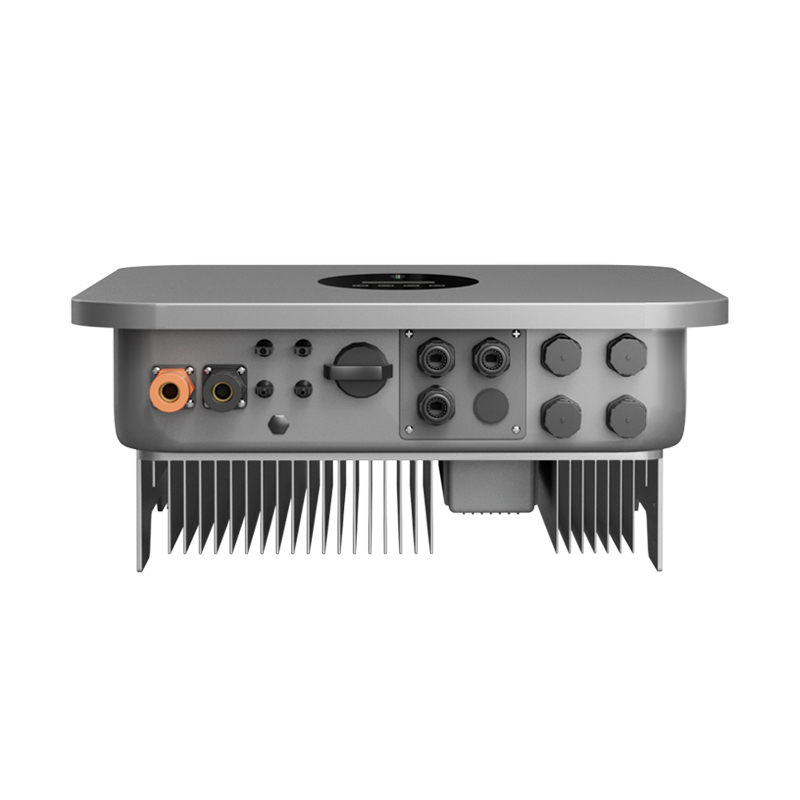

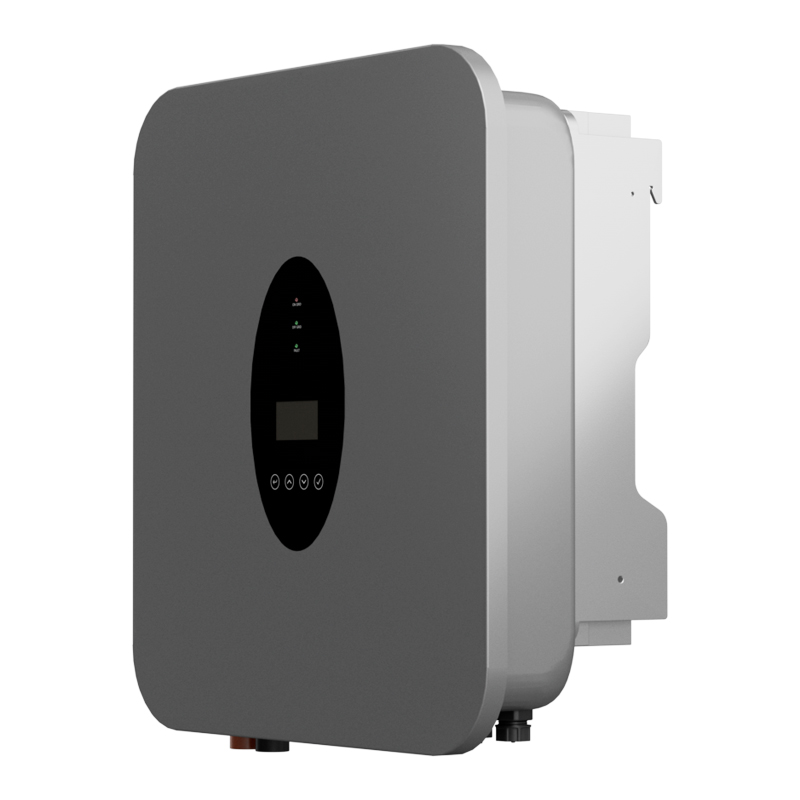

离并网混合逆变器SUH6K
北极光离并网混合逆变器SUH6K，最大功率范围宽，拥有2个MPPT,每个MPPT最大19A 输入电流，支持发电机和智能负载，最多10个逆变器并联，强大而高可用性。
拥有UN38.3/RoHS/EMC/LVD认证
